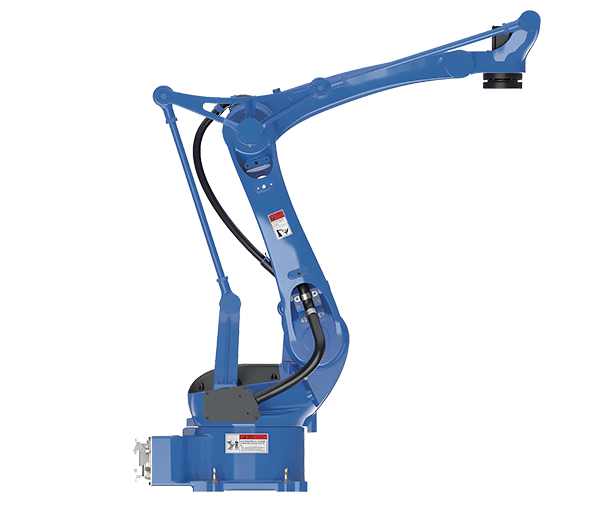

- Domestic-four joint robot
- Domestic-six joint robot
- Yaskawa,Japan-six joint robot
- Fanuc,Japan-six joint robot
- ABB,Swiss-six joint robot
- Kuka,Germany-six joint robot
- Forging manipulator
- Two-axis cooedinate forging manipulator
- Two-axis cooedinate forging manipulator (D)
- Three-axis cooedinate forging manipulator
- Three-axis forging manipulator (H)
- Three-axis forging manipulator (S)
- Single arm walking beam forging Manipulator
- Dual arm walking beam forging Manipulator
- Three-axis swing arm forging manipulator
- Two-axis feeding forging manipulator
-
Tel：0532-83771000
-
Tax：0532-83772000
-
Ms Hu：86-15860329866
技术参数
TECHNICAL PARAMETERS>>>
|
型号 |
Model |
JL-V4-15 |
JL-V4-25 |
JL-V4-130 |
JL-V4-180 |
|
工作半径 |
Working radius |
R≈1530mm |
R≈1885mm |
R≈2485mm |
R≈3130mm |
|
负载 |
Load |
15kg |
25kg |
130kg |
180kg |
|
轴数 |
Number of axes |
4 |
4 |
4 |
4 |
|
重复精度 |
Repeat accuracy |
±0.08mm |
±0.08mm |
±0.2mm |
±0.2mm |
|
气压要求 |
Pressure requirements |
4.0~6.0kg/cm2 |
4.0~6.0kg/cm2 |
4.0~6.0kg/cm2 |
4.0~6.0kg/cm2 |
|
编程界面 |
Programming interface |
中英文触摸屏 |
中英文触摸屏 |
中英文触摸屏 |
中英文触摸屏 |
|
控制系统 |
Control system |
标配 |
标配 |
标配 |
标配 |
|
输入电源 |
Input power supply |
AC220V 50/60HZ |
AC220V 50/60HZ |
AC380V 50/60HZ |
AC380V 50/60HZ |
|
电源功率 |
Power supply |
4kw |
5kw |
16kw |
18kw |
|
环境温度 |
Ambient temperature |
0 ～ 50℃ |
0 ～ 50℃ |
0 ～ 50℃ |
0 ～ 50℃ |
|
本体重量 |
Body weight |
≈155kg |
≈245kg |
≈820kg |
≈845kg |
|
安装方式 |
Installation method |
地面安装 |
地面安装 |
地面安装 |
地面安装 |
